VG - variable geometry

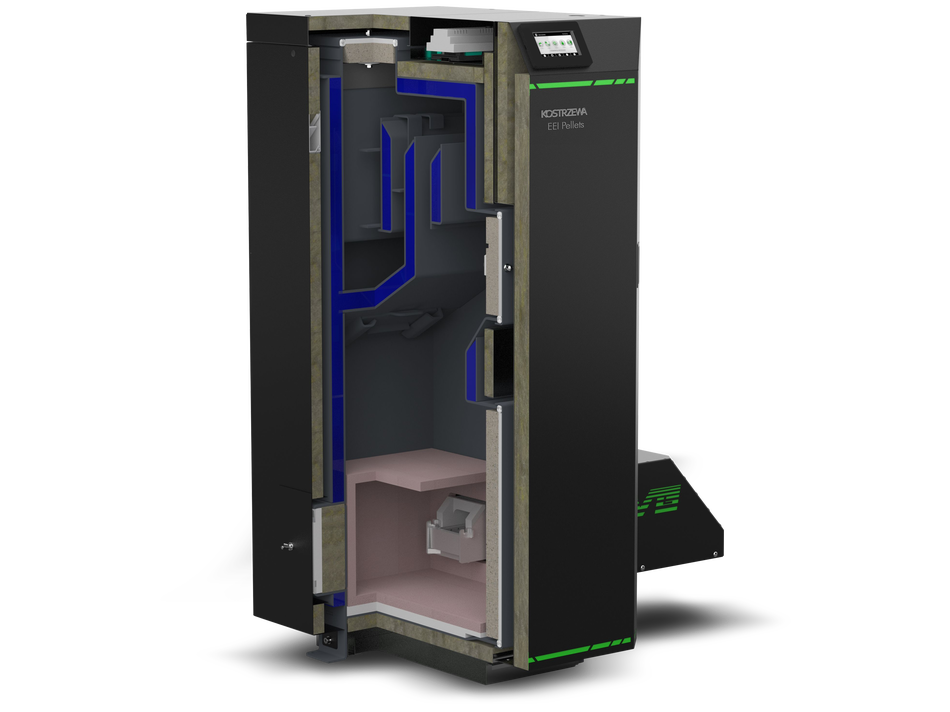

EEI Pellets - compact pellet boiler with variable geometry Platinum Bio VG burner!

It burns any type of wood pellet (class A1, A2, B ).
Ecodesign 2020 A+ Energy Class VG - Variable Geometry Technology OMS - Monitoring and control system 5 Class Platinum Bio VG Burner Patent OMS System Patent
A1 Pellets A2 Pellets B Pellets A1 Pellets/Oat
A1 Pellets A2 Pellets B Pellets A1 Pellets/Oat
This device is subsidised in these countries:

Poland Austria Slovakia Czech Republic
EEI Pellets
8 kW 10 kW 16 kW 24 kW 32 kW
EEI Pellets See product
  • Passive house Passive house
  • Single-family house Single-family house
  • Multi-family house Multi-family house
  • Small farm Small farm
Features

COMPACT AND WARM

Our 8 kW boiler is a breakthrough in the miniaturisation of the biomass boilers without affecting the heat output. Designed for buildings with limited heat demand, e.g. greenhouses, modular houses or passive houses. Other EEI PELLETS line boilers are an ideal solution for heating system where comfort, economy and cleanliness are key factors.



ULTRA COST-EFFICIENT

EEI PELLETS series boilers were designed to improve fuel and energy efficiency using energy efficient components and a variable geometry Platinum Bio VG burner adapting the grate geometry to the weather conditions and heat demand. The lowest available heat output – just over 2.5 kW - allows to adapt the heating parameters to a very low heat demand.



DURABLE

Our boilers guarantee failure-free operation for many years. High quality steel and the highest quality components. All our boilers are individually tested for durability at min. 4 bar - a feature hardly ever found elsewhere.



RUN AND FORGET

Our boilers are virtually maintenance-free to guarantee the highest comfort of operation. Automatic boiler start-up and shut-down with fuel level and ash content monitoring and notification in advance when fuel refilling or ash pan cleaning is required. The number of visits to the boiler room can be kept to a minimum



INTERNET MODULE

All boiler and central heating system functions can be remotely monitored using a PC or a smartphone (optional).



RELIABLE SERVICE

We maintain an extensive service network. Over 200 qualified service engineers provide warranty and post-warranty services in Poland and abroad. Service can be arranged using our internet platform at www.serwis.kostrzewa.com.pl.



COMPLETE HEAT SOLUTION

Even the best boiler isn’t enough. We offer complete boiler room and heating system solutions. We offer advanced solutions including pellet storage, pneumatic fuel feeding, cascade automation, weather compensated CH system control, DHW and buffer tank control, return protection, fuel and ash sensors, heat pump, solar panel and gas boiler control.

Tests and certificates

Our boilers are tested by an accredited testing facility - a member of the international Association of Accreditation..



The test results show that KOSTRZEWA products meet the emission requirements laid down in the Ecodesign Directive and guarantee user safety.



All boiler types undergo over 20 different tests including:



  • Boiler pressure test at 4 bar
  • Energy-efficiency and emission tests at 10%, 11% and 13% fuel oxygenation
  • Energy consumption test in operation and standby mode
  • Operational test in a closed loop system without auxiliary safety devices

    Our boilers are included in the list of devices qualifying for a subsidy in many EU countries.

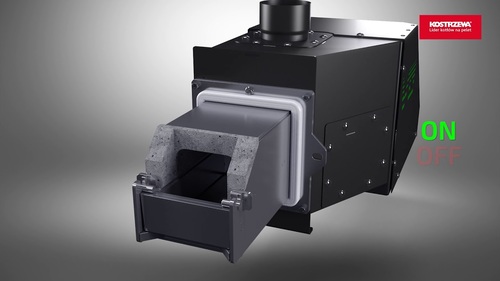

  OMS (operating monitoring system)

OMS (operating monitoring system)

Operating and monitoring system for solid fuel boilers. Our boilers are fitted with a system monitoring fuel level in the storage tank and the amount of ash in the ash pan to guarantee convenient and comfortable operation. In many boilers without a similar system available on the market user must remember to refill fuel and remove ash regularly. The system, developed by KOSTRZEWA, measures and notifies the user in advance on required actions (fuel refilling or ash removal). Notifications are displayed on a boiler controller screen and a room temperature controller screen. Our solution is patent protected.

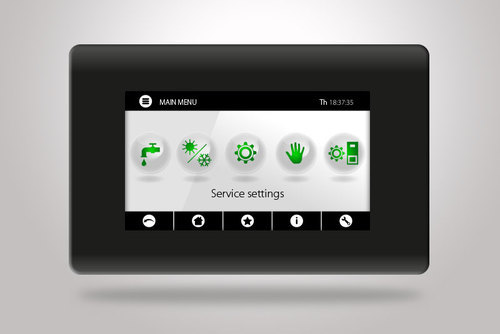

PLATINUM BIO ECOMAX 860P LITE CONTROL SYSTEM WITH A 5-INCH FULL-COLOUR TOUCH-CAPACITIVE DISPLAY

PLATINUM BIO ECOMAX 860P LITE CONTROL SYSTEM WITH A 5-INCH FULL-COLOUR TOUCH-CAPACITIVE DISPLAY

Automatic system controls: fuel feeding from the storage hopper, fuel feeder, pressure blower, igniter, CH pump, DHW pump, fuel level sensor, boiler/buffer tank pump, linear actuator, mixing valve, central heating system mixing valve and four auxiliary mixing valve - module B - 2 mixing valves (optional) + module C - 2 mixing valves (optional), recirculation pump (optional) and buffer tank (optional).



Optional accessories: external temperature sensor, CH sensor, DHW sensor, return temperature sensor, colour ecoSTER TOUCH control panel with remote boiler control, programmable wireless 7-day thermostat, programmable wired 7-day thermostat, adjustable temperature sensor, EcoLAMBDA oxygen sensor, auxiliary extension module (B) and auxiliary module.

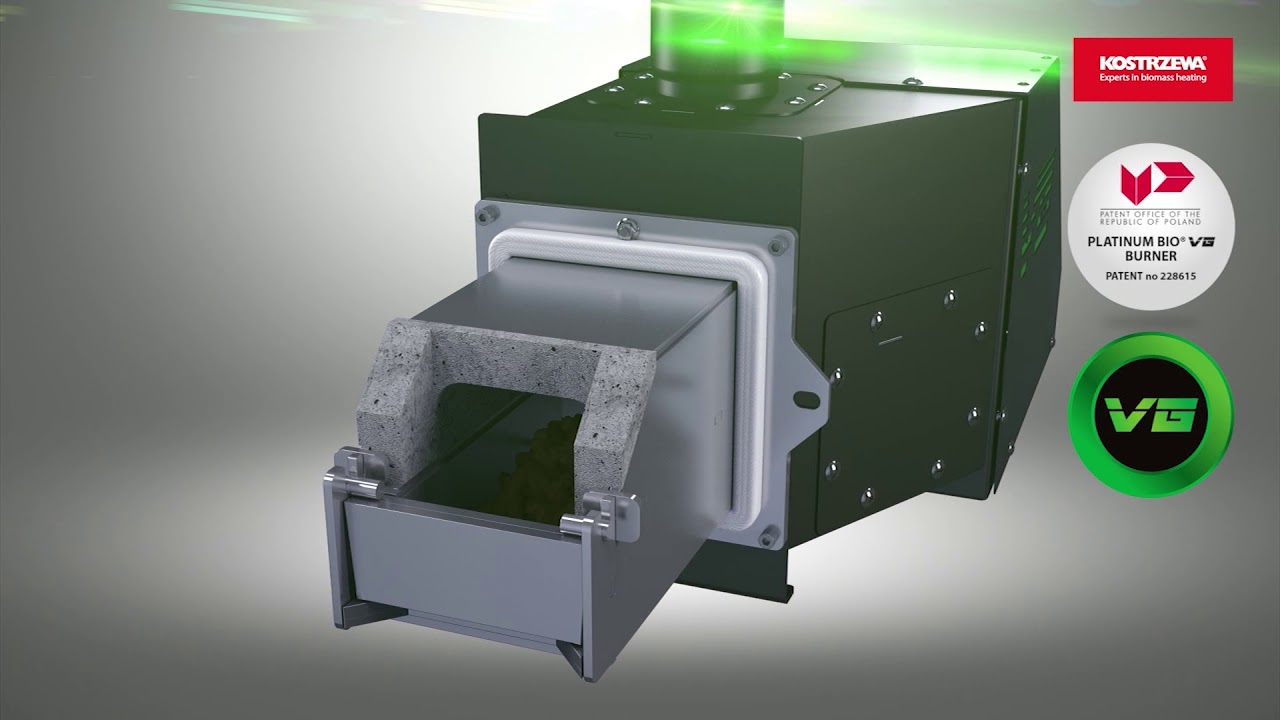

  KOSTRZEWA EEI PELLETS 8- 32 kW boiler with Platinum Bio VG burner

KOSTRZEWA EEI PELLETS 8- 32 kW boiler with Platinum Bio VG burner

Watch a video presentation of EEI Pellets boiler (with Platinum Bio VG burner)

  KOSTRZEWA PLATINUM BIO VG BURNER - burns pellets : A1, A2, B

KOSTRZEWA PLATINUM BIO VG BURNER - burns pellets : A1, A2, B

Compatible with certified class A1 pellet and economy class A2 and B pellet. Regular slag (cinder) removal is no longer needed even with low quality pellets. The burner is cleaned automatically in a continuous operation mode. Platinum Bio VG burner is patent protected (patent no. 228615, Patent Office of the Republic of Poland).

EEI Pellets
Object power selection
Boiler power Heating surface
m2 m3
8 kW 30-140 75-350
10 kW 30-160 75-400
16 kW 85-200 212-500
24 kW 100-300 250-750
32 kW 150-400 375-1000
Surface is provided at ceiling height of 2.5 m.
Specification
8 kW 10 kW 16 kW 24 kW 32 kW
Flue draught mbar 0,15-0,20 0,15-0,20 0,15-0,20 0,15-0,20 0,15-0,20
Water capacity l 44 44 58 65 102
Maximum working pressure bar 2 2 2 2 2
Test pressure bar 4 4 4 4 4
Flue gas temperature at rated output °C 89,2 100 112,9 140,9 129,2
Flue gas temperature at minimum output °C 68,3 68,3 72,7 78,3 79,2
Flue gas mass flow at rated output kg/s 0,00542 0,00644 0,00889 0,01419 0,02108
Flue gas mass flow at minimum output kg/s 0,00301 0,00301 0,00283 0,00442 0,00556
Flue connector diameter mm 127 127 159 159 159
Flow resistance at 10 K mbar 5,23 5,45 1,7 3,8 4,2
Flow resistance at 20 K mbar 4,84 4,9 0,5 1,1 1,5
Rated heat output kW 8,3 10 15 24 32
Heat output range kW 2,5-8,3 2,5-10 4,4-15 7,2-24 8,7-32
Efficiency at rated output % 92,2 91,6 92,2 91,3 90,6
Efficiency at minimum output % 87,5 87,5 90,3 91,7 90,4
Boiler class as per EN 303-5 5 5 5 5 5
Combustion time at rated output
(fuel calorific value: 17,280 kJ/kg)		 h 93 79 52 48 32
Temperature controller settings range °C 50-80 50-80 50-80 50-80 50-80
Minimum water return temperature °C 45 45 45 45 45
Fuel type Class Sawdust granulate (pellet made according to EN ISO 17225-2 class A1)
Test fuel used in the certification procedure - A1.
Also compatible with A2 and B class pellet.
Storage hopper capacity l 290 290 290 290 290
Hopper dimensions mm 737x602 737x602 737x602 737x602 737x602
Power supply V / Hz / A 230 / 50 / 2 230 / 50 / 2 230 / 50 / 2 230 / 50 / 2 230 / 50 / 2
Power input at rated output W 56 56 82 128 74
Power input at minimum output W 20 20 23 27 39
Power input in STANDBY mode W 2 2 2 2 2
Maximum power input W 485 485 492 492 509
Maximum noise level dB 52 52 52 52 52
Fuel diameter mm 6 6 6 6 6

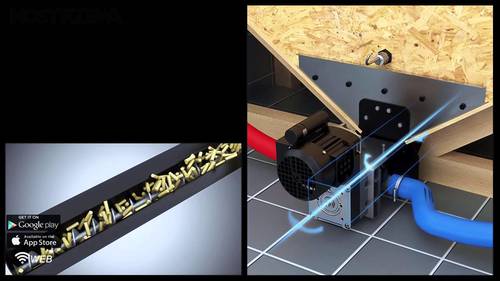

PELLETS VACUUM (PNEUMATIC PELLET FEEDER)

A virtually maintenance-free pneumatic device feeding pellet at a large distance from the storage area directly to the boiler including multiple sensors for a fully automatic operation.  If MINIMUM level is detected in the buffer tank, it is immediately refilled to the MAXIMUM level. The device can also be timer programmed, i.e. the buffer tank will be refilled to the MAXIMUM level at a pre-set date and time.

PELLET is a processed waste timber compressed under high pressure without use of any bonding agents.



PELLET CLASSES TO PN-EN ISO 17225-2:2014-07:

A1 - ash content ≤0.7% Premium quality product

A2 - ash content ≤1.2%

B - ash content ≤2%



PELLET - eco-friendly, high-energy clean fuel!

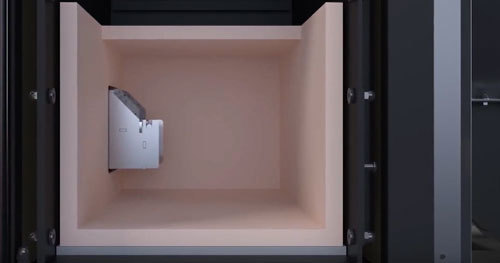

Ceramics is everywhere - the combustion chamber, the heat exchanger and the burner are coated with advanced ceramics to improve the combustion process and efficiency and to reduce the emission. During operation, the ceramics heats up to over 1,000°C to improve the biomass combustion efficiency.



Flue gas vortex generators retain energy inside the boiler.
