The burner is virtually maintenance-free
Simplified operation for the highest comfort.

Simple operation - fill the main hopper with fuel and press START.
A1 Pellets A1 Pellets/Oat
A1 Pellets A1 Pellets/Oat
Platinum Bio 1
16 kW 24 kW 32 kW 40 kW
Platinum Bio 1
  • Passive house Passive house
  • Single-family house Single-family house
  • Multi-family house Multi-family house
  • Small farm Small farm
Description

THE NUMBERS SPEAK FOR THEMSELVES - OVER 25,000 PELLET BURNERS SOLD.



Simplified operation for the highest comfort.



Our engineers carefully selected all the parameters for best performance.



Considering the environment and your wallet, we have created a 2nd Generation Fuzzy Logic controller for high precision heat output control depending on the building’s heat demand.



High precision automatic air supply with a broadband oxygen sensor for up to 40% fuel use reduction.

Features
  • automatic burner start-up
  • automatic 2nd Generation Fuzzy Logic controller
  • flame control with a photocell
  • low thermal inertia during start-up and shut-down
  • low power input
  • control of up to 16 heating circuits (heaters, floor heating or domestic hot water) - optional
  • burner temperature control for the highest safety
  • three-stage fuel ignition eliminates gas explosion during start-up
  • AUTOSTART after power loss - the current settings are stored
  • separate primary and secondary air ducts for reduced CO emission (emission levels similar to gas and oil burners)
  • automatic grate cleaning function (not available in the gravity fed models)
  • oat hull pellets - design compatible with oat hull pellets (oat hull/pellet 50/50 mix)
  • ceramic insert - reduced emission and improved efficiency - optional

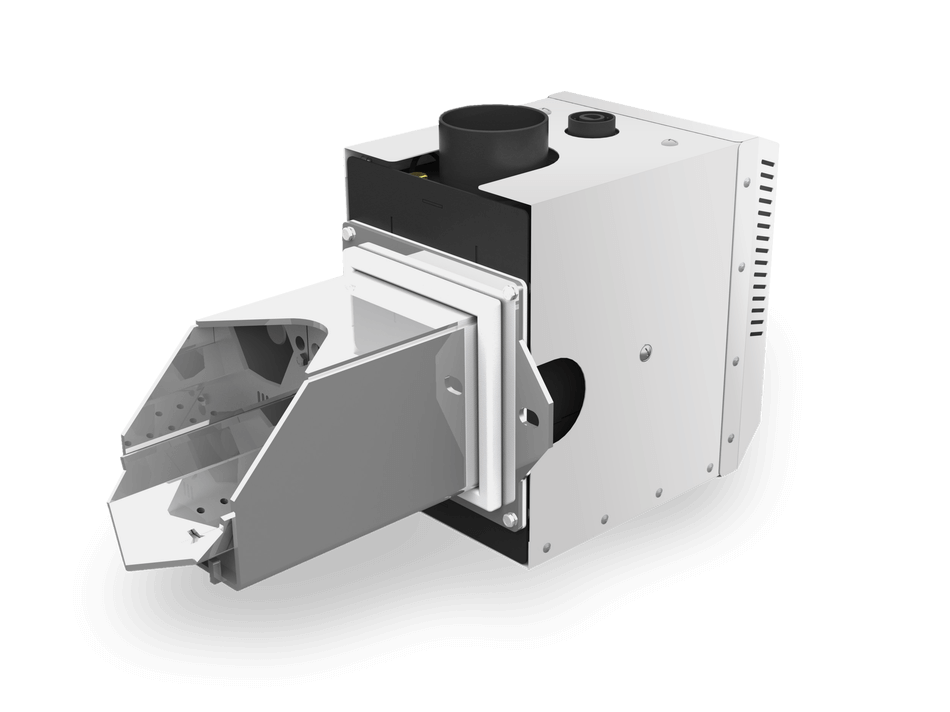

Platinum Bio 1 burner
PROMOTIONAL SET
  RETROFITTING OIL BOILERS WITH KOSTRZEWA PLATINUM BIO BURNERS

RETROFITTING OIL BOILERS WITH KOSTRZEWA PLATINUM BIO BURNERS

Watch the video.

  RETROFITTED BOILER ROOM

RETROFITTED BOILER ROOM

Watch our video of a retrofitted boiler room with an existing oil burner replaced with Platinum Bio 16 kW pellet burner for 180 m² of heated area.

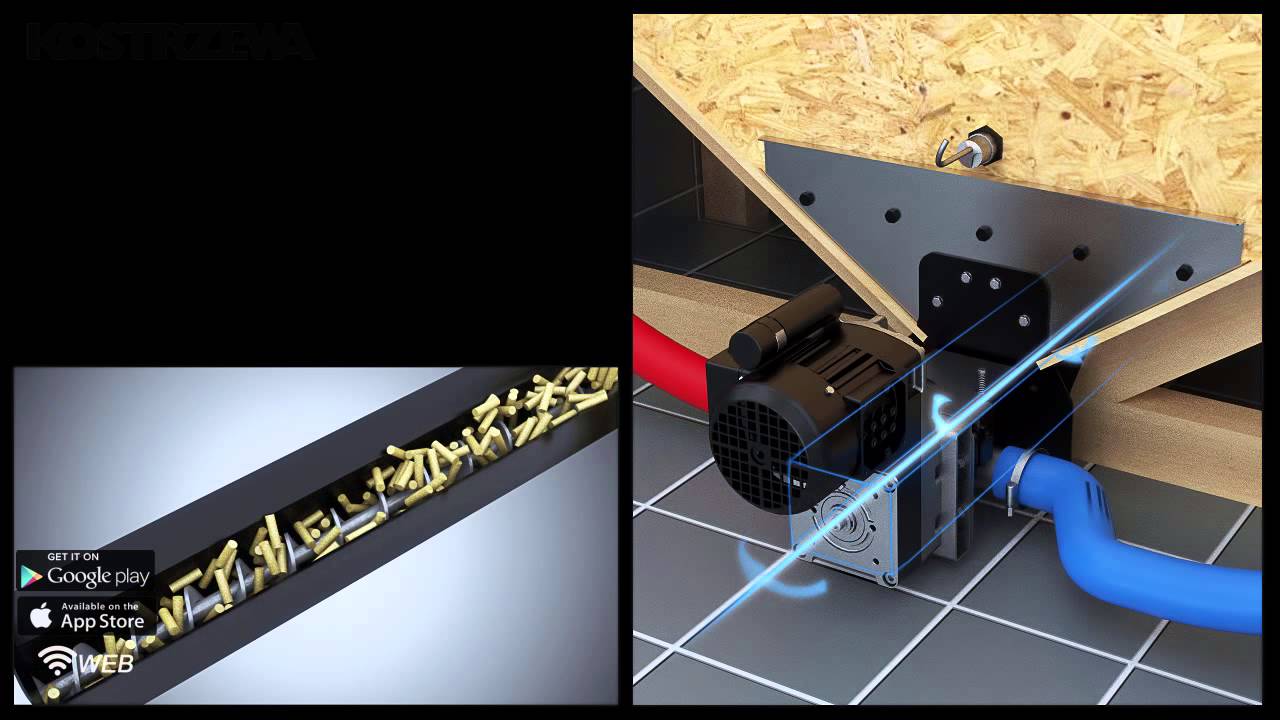

  PELLETS VACUUM (PNEUMATIC PELLET FEEDER)

PELLETS VACUUM (PNEUMATIC PELLET FEEDER)

A virtually maintenance-free pneumatic device feeding pellet at a large distance from the storage area directly to the boiler including multiple sensors for a fully automatic operation.  If MINIMUM level is detected in the buffer tank, it is immediately refilled to the MAXIMUM level. The device can also be timer programmed, i.e. the buffer tank will be refilled to the MAXIMUM level at a pre-set date and time.

PLATINUM BIO CONTROL SYSTEM

PLATINUM BIO CONTROL SYSTEM

Platinum Bio controller controls not only the boiler but the entire central heating and domestic hot water system. Adjustable blower power with 2nd Generation Fuzzy Logic controller.



SYSTEM CONTROLS:
Fuel feeding from the storage hopper, automatic feeder, ash removal, burner feeder, pressure blower, igniter, CH pump, DHW pump, mixing valve (optional) and heating element - igniter.





Specification
16 kW 24 kW 32 kW 40 kW
The scope heating power for pellets kW 4,8-16 7,2-24 9,3-32 12-40
Emissivity of CO ppm <100 <100 <100 <100
Fuel pellet pellet pellet pellet
Fuel diameter mm 6-8 6-8 6-8 6-8
Power supply V 230 230 230 230
Degree of protection IP 40 IP 40 IP 40 IP 40
Feeder length (standard) m 1,6 1,6 1,6 1,6
Reservoir volume (standard) l 295 295 295 295
Feeder length (option) m 2,0 / 2,5 / 3,0 2,0 / 2,5 / 3,0 2,0 / 2,5 / 3,0 2,0 / 2,5 / 3,0
Reservoir volume (option) l 203/290 / 295/470 / 850 / 1510 203/290 / 295/470 / 850 / 1510 203/290 / 295/470 / 850 / 1510 203/290 / 295/470 / 850 / 1510

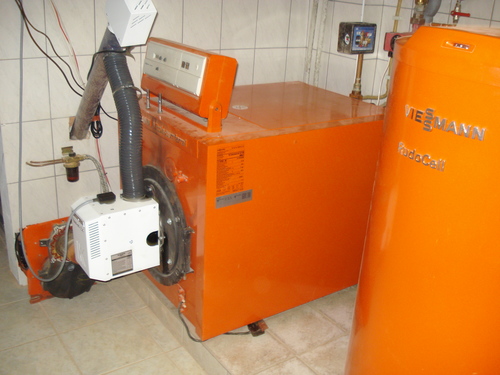

Viessmann Vitola Comferral oil boiler retrofitted with Platinum Bio 1 pellet burner.

Urlich boiler retrofitted with Platinum Bio 1 pellet burner.

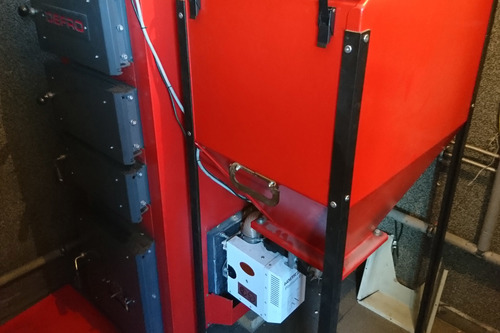

Defro Duo Uni pea coal 25 kW boiler retrofitted with Platinum Bio 1 pellet boiler.
