High quality
design, functions and eco-friendly features.

Features OMS (Operating Monitoring System) - an operating and monitoring system for solid fuel boilers


Compatible with various fuels: pellets, oat hull pellets, wood (manual stoking).
OMS - Monitoring and control system A+ Energy Class
A1 Pellets A1 Pellets/Oat Wood
A1 Pellets A1 Pellets/Oat Wood
This boiler is subsidised in these countries:

Slovakia Germany Bulgaria Netherlands
Twin Bio
12 kW 16 kW 24 kW 32 kW
Twin Bio
  • Passive house Passive house
  • Single-family house Single-family house
  • Multi-family house Multi-family house
  • Small farm Small farm
Features

WOOD, PELLETS AND OAT HULL PELLETS
Twin Bio is compatible with class A1 pellets, pellet/oat hull pellet mixes and wood. Specially designed for customers abroad. In Poland, available in NE version only (not suitable for wood fuels).


LARGE STORAGE HOPPER
TWIN BIO is the result of many years of experience in boiler manufacturing. Designed for households with large boiler rooms suitable for installation of a boiler with a 290 l storage hopper. Optional storage hoppers up to 1,386 l (1 tonne of pellet) are available. The boiler is a cost-effective device for burning biomass including pellet or pellet/oats mixes.



SIMPLE AND CONVENIENT
OMS monitors fuel level and ash content. User is informed in advanced that the fuel storage must be refilled and the ash pan requires cleaning.



LOW FUEL CONSUMPTION
Reduced fuel consumption with Twin Bio boiler. A unique design and advanced ceramic inserts for over 90% efficiency.



DURABLE
Our boilers guarantee failure-free operation for many years. High quality steel and the highest quality components. All our boilers are individually tested for durability at min. 4 bar - a feature hardly ever found elsewhere.



RELIABLE SERVICE
We maintain an extensive service network. Over 200 qualified service engineers provide warranty and post-warranty services in Poland and abroad.



INTERNET MODULE
All boiler and central heating system functions can be remotely monitored using a PC or a smartphone (optional).



A COMPLETE HEAT SOLUTION
Even the best boiler isn’t enough. We offer complete boiler room and heating system solutions. We offer advanced solutions including pellet storage, pneumatic fuel feeding, cascade automation, weather compensated CH system control, DHW and buffer tank control, return protection, fuel and ash sensors, heat pump, solar panel and gas boiler control.

WOOD
alternative fuel

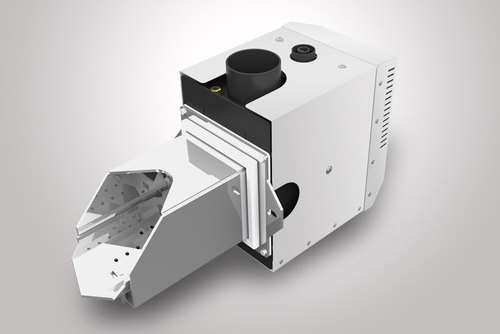

  PLATINUM BIO BURNER

PLATINUM BIO BURNER

Compact, silent and energy-efficient.



FEATURES:
automatic burner start-up, automatic burner modulation with 2nd Generation Fuzzy Logic, flame control with a photocell, low thermal inertia during start-up and shutdown, low power input, burner temperature control for highest safety, three-stage start-up to prevent gas explosions, AUTOSTART after power loss - the current settings are stored, separate primary and secondary air ducts for reduced CO emission (emission levels similar to gas and oil burners), automatic cleaning function - automatic slag removal from the grate (not available in the gravity fed models), oats - burner design allows use of oats as a fuel, ceramic insert - reduced emission and higher efficiency.

  OMS (operating monitoring system)

OMS (operating monitoring system)

Operating and monitoring system for solid fuel boilers. Our boilers are fitted with a system monitoring fuel level in the storage tank and the amount of ash in the ash pan to guarantee convenient and comfortable operation. In many boilers without a similar system available on the market user must remember to refill fuel and remove ash regularly. The system, developed by KOSTRZEWA, measures and notifies the user in advance on required actions (fuel refilling or ash removal). Notifications are displayed on a boiler controller screen and a room temperature controller screen. Our solution is patent protected.

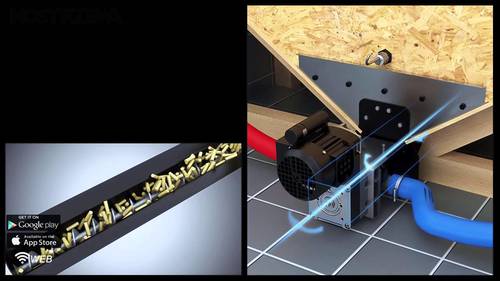

  PELLETS VACUUM (PNEUMATIC PELLET FEEDER)

PELLETS VACUUM (PNEUMATIC PELLET FEEDER)

A virtually maintenance-free pneumatic device feeding pellet at a large distance from the storage area directly to the boiler including multiple sensors for a fully automatic operation.  If MINIMUM level is detected in the buffer tank, it is immediately refilled to the MAXIMUM level. The device can also be timer programmed, i.e. the buffer tank will be refilled to the MAXIMUM level at a pre-set date and time.

.

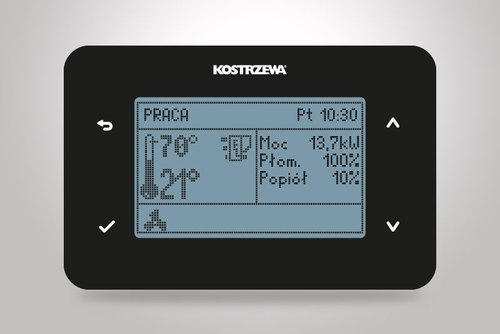

PLATINUM BIO ECOMAX 860P – SIMPLE CONTROL SYSTEM

PLATINUM BIO ECOMAX 860P – SIMPLE CONTROL SYSTEM

An advanced device monitoring the combustion process in the boiler and the pellet burner.



SYSTEM CONTROLS:
fuel feeding from the storage tank, fuel feeder, pressure blower, igniter, CH pump, DHW pump, fuel level sensor, boiler/buffer tank pump, heating circuit mixing valve - module B (optional), recirculation pump - module B (optional), buffer tank - module B (optional), two auxiliary mixing valves - module B (optional), two auxiliary mixing valves - module C (optional).



OPTIONAL:
external temperature sensor, CH sensor, DHW sensor, colour ecoSTER TOUCH control panel with remote boiler control, programmable wireless 7-day thermostat, programmable wired 7-day thermostat, adjustable temperature sensor, EcoLAMBDA oxygen sensor, auxiliary extension module (B, C) and EcoNET internet module.

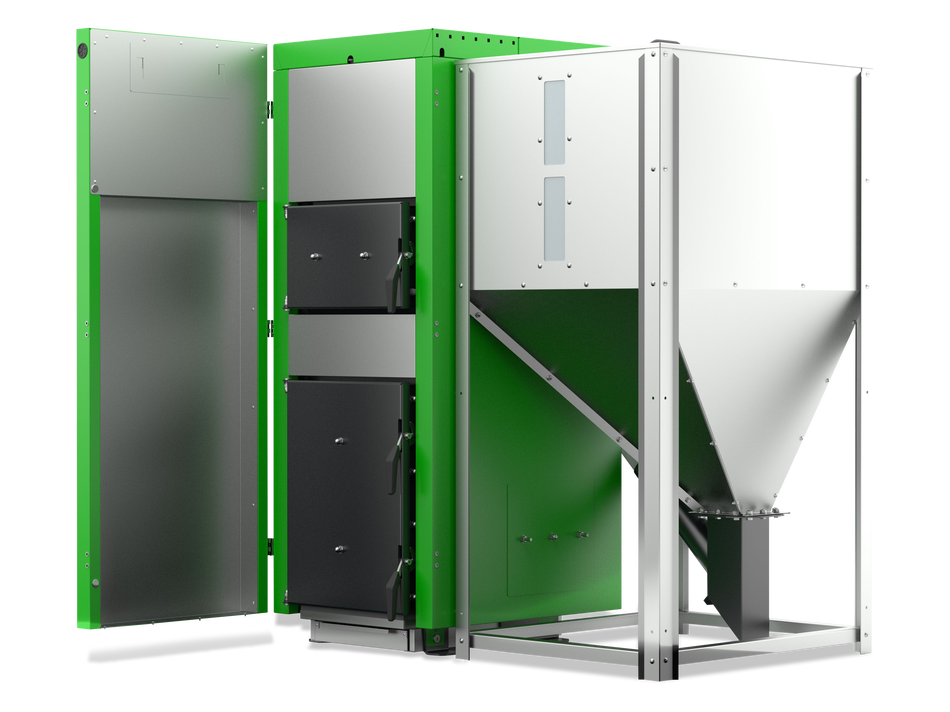

Twin Bio
Object power selection
Boiler power Heating surface
m2 m3
12 kW 50-200 125-500
16 kW 85-200 212-500
24 kW 100-300 250-750
32 kW 150-400 375-1000
Surface is provided at ceiling height of 2.5 m.
Specification
12 kW 16 kW 24 kW 32 kW
Flue draught mbar 0,10-0,25 0,15-0,25 0,15-0,25 0,15-0,25
Water capacity l 44 58 65 102
Maximum working pressure bar 2 2 2 2
Test pressure bar 4 4 4 4
Flue gas temperature at rated output °C 135 113 136,2 130
Flue gas temperature at minimum output °C 80 78,5 81,8 85
Flue gas mass flow at rated output kg/s 7,06 9,42 13,14 17,08
Flue gas mass flow at minimum output kg/s 5,8 7,74 8,21 10,67
Flue connector diameter mm 127 159 159 159
Flow resistance at 10 K mbar 1,4 1,7 3,8 4,2
Flow resistance at 20 K mbar 0,4 0,5 1,1 1,5
Maximum heat output kW 13 16 24 33
Rated heat output kW 12 14 21 32
Heat output range kW 4,2-14,5 4,4-15 7-24 8,7-32
Efficiency at rated output % 90,5 90,8 90,4 90,6
Boiler class as per EN 303-5:2012 5 5 5 5
Combustion time at rated output
(fuel calorific value: 17,280 kJ/kg)
h 85 72 48 32
Temperature controller settings range °C 50-80 50-80 50-80 50-80
Minimum water return temperature °C 45 45 45 45
Fuel type Class Sawdust granulate (pellets) made to EN 303-5:2012 / PN- EN ISO 17225-2 Class C1 / A1)
Test fuel used in the certification procedure - A1.
Also compatible with A1/oat and wood.

Storage hopper capacity l 290 290 290 290
Hopper dimensions mm 340x211 340x211 440x211 440x250
Power supply V / Hz / A 230 / 50 / 2 230 / 50 / 2 230 / 50 / 2 230 / 50 / 2
Power input at rated output W b.d. 82 128 74
Power input at minimum output W b.d. 23 27 39
Power input in STANDBY mode W 2 2 2 2
Maximum power input W 485 492 492 509
Maximum noise level dB 52 52 52 52

PELLET is a processed waste timber compressed under high pressure without use of any bonding agents.



PELLET CLASSES TO PN-EN ISO 17225-2:2014-07:

  • A1 - ash content ≤0.7% Premium quality product
  • A2 - ash content ≤1.2%
  • B - ash content ≤2%



PELLET - eco-friendly, high-energy clean fuel!

Ceramics is everywhere - the combustion chamber, the heat exchanger and the burner are coated with advanced ceramics to improve the combustion process and efficiency and to reduce the emission. During operation, the ceramics heats up to over 1,000°C to improve the biomass combustion efficiency.



Flue gas vortex generators retain energy inside the boiler.



Watch a video presentation of Twin Bio boiler (with Platinum Bio burner)



Attention! Boilers for the Polish market do not have an emergency grate for wood.







Download


Declaration of Conformity (DE) 355.97 KB

Declaration of Conformity 373.25 KB

Certificate 2.28 MB

Product data sheet 137.96 KB
