Platinum Bio VG burner
First variable geometry burner in Poland!

Compatible with any wood pellet type (class: A1, A2 and B)
A+ Energy Class VG - Variable Geometry Technology OMS - Monitoring and control system Patented design OMS System Patent
A1 Pellets A2 Pellets B Pellets A1 Pellets/Oat
A1 Pellets A2 Pellets B Pellets A1 Pellets/Oat
Platinum Bio VG
12 kW 16 kW 24 kW 35 kW
Platinum Bio VG
  • Passive house Passive house
  • Single-family house Single-family house
  • Multi-family house Multi-family house
  • Small farm Small farm
Features

ECONOMY AND CONVENIENCE
Our devices are compatible with certified class A1 pellet and economy class A2 and B pellet. Using low quality pellets no longer requires burner shutdown to remove the slag (cinders). The burner is cleaned automatically in a continuous operation mode. Platinum Bio VG burner is patent protected (patent no. 228615, Polish Patent Office).

COMFORT
For comfort and convenience, our boilers with Platinum Bio VG burners are fitted with a sensor monitoring fuel level in the storage tank. The system developed by KOSTRZEWA measures and notifies the user in advance on required actions (fuel refilling or ash removal).Notifications are displayed on the boiler’s controller screen and the room temperature controller screen. The solution is patented in the Polish Patent Office.

VARIABLE GEOMETRY
Innovation on a European scale - the device automatically adjusts its parameters to the building’s heat demand by increasing or decreasing grate length using a variable geometry technology patented in the Polish Patent Office.

LOW POLLUTANT EMISSION
The device design reduces the emission of hazardous flue gases (CO, NOx, OGC) and dusts to the atmosphere.

BUILDING HEATING SYSTEM CONTROL

Allows to connect several independent heating circuits within the building and set different temperatures in manual or weather compensation mode. Can also control a domestic hot water heat exchanger.

INTERNET MODULE

All boiler and central heating system functions can be remotely monitored using a PC or a mobile device (optional).

SERVICE
KOSTRZEWA employs over 200 qualified authorized service engineers providing warranty and post-warranty services.

Platinum Bio VG
BURNER SET
  PLATINUM BIO VG BURNER - FIRST VARIABLE GEOMETRY BURNER IN POLAND!

PLATINUM BIO VG BURNER - FIRST VARIABLE GEOMETRY BURNER IN POLAND!

Compatible with all fuel types (class: A1, A2, B) including an economy wood pellet with high sand content. Regular slag (cinder) removal is no longer needed even with low quality pellets. The burner is cleaned automatically in a continuous operation mode. Platinum Bio VG burner is patent protected (patent no. 228615, Patent Office of the Republic of Poland).

  OMS (operating monitoring system)

OMS (operating monitoring system)

Operating and monitoring system for solid fuel boilers. Our boilers are fitted with a system monitoring fuel level in the storage tank and the amount of ash in the ash pan to guarantee convenient and comfortable operation. In many boilers without a similar system available on the market user must remember to refill fuel and remove ash regularly. The system, developed by KOSTRZEWA, measures and notifies the user in advance on required actions (fuel refilling or ash removal). Notifications are displayed on a boiler controller screen and a room temperature controller screen. Our solution is patent protected.

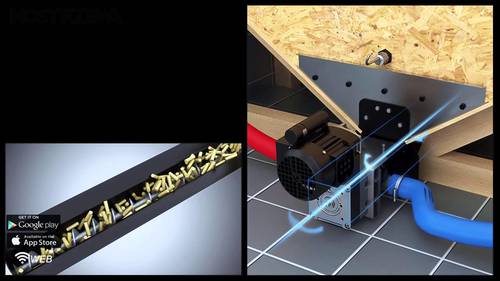

  PELLETS VACUUM (PNEUMATIC PELLET FEEDER)

PELLETS VACUUM (PNEUMATIC PELLET FEEDER)

A virtually maintenance-free pneumatic device feeding pellet at a large distance from the storage area directly to the boiler including multiple sensors for a fully automatic operation.  If MINIMUM level is detected in the buffer tank, it is immediately refilled to the MAXIMUM level. The device can also be timer programmed, i.e. the buffer tank will be refilled to the MAXIMUM level at a pre-set date and time.



PLATINUM BIO ECOMAX 920 O TOUCH CONTROL SYSTEM

PLATINUM BIO ECOMAX 920 O TOUCH CONTROL SYSTEM

with a colour touch control panel - an advanced device monitoring the combustion process in the boiler and the pellet burner.



System controls: fuel feeding from the storage hopper, fuel feeder, pressure blower, igniter, CH pump, DHW pump, boiler pump, fuel level sensor, outdoor temperature sensor, return temperature sensor and mixing valve actuator



Optional accessories: external temperature sensor, CH sensor, DHW sensor, return temperature sensor, colour ecoSTER TOUCH control panel with remote boiler control, programmable wireless 7-day thermostat, programmable wired 7-day thermostat, adjustable temperature sensor, EcoLAMBDA oxygen sensor, auxiliary extension module (B), auxiliary extension module (C) and EcoNET internet module.

Specification
12 kW 16 kW 24 kW 35 kW
The scope heating power for pellets kW 4,2-14 5,1-17 7,8-26 10,5-35
Emissivity of CO ppm <100 <100 <100 <100
Fuel pellet pellet pellet pellet
Fuel diameter mm 6-8 6-8 6-8 6-8
Power supply V 230 230 230 230
Degree of protection IP 40 IP 40 IP 40 IP 40
Standard feeder length [m] m 1,6 1,6 1,6 1,6
Standard reservoir volume [L] l 295 295 295 295
Feeder length (option) m 2,0 / 2,5 / 3,0 2,0 / 2,5 / 3,0 2,0 / 2,5 / 3,0 2,0 / 2,5 / 3,0
Reservoir volume (optional) l 203/290 / 295/470 / 850 / 1510 203/290 / 295/470 / 850 / 1510 203/290 / 295/470 / 850 / 1510 203/290 / 295/470 / 850 / 1510

Download


295 l tank installation manual 2.05 MB
