HPR Deluxe Heat pump
Drawing on the thermal energy of the air, the HPR Deluxe air-to-water heat pump efficiently heats new and modernised detached houses. It is an ultra-quiet, high-performance unit with a safe and atmosphere-friendly refrigerant.

The heat pump uses the natural R290 refrigerant, which has a very low GWP 100 (Global Warming Potential) of just 0,02. In comparison, the R32 refrigerant popular in heat pumps has a GWP 100 of 675.

Powered by 80% renewable energy drawn from the air and 20% electricity.
Current
Current
HPR Deluxe +HB
400 500
HPR Deluxe +HB  See product
  • Single-family house Single-family house
  • Passive house Passive house
  • Small farm Small farm
  • Multi-family house Multi-family house
Benefits

pompa_ciepla_HPR_500_znaczek_16F_eng

HIGH EFFICIENCY

A high coefficient of performance (COP) guarantees an energy-efficient pump and lower electricity costs.



COP CHART

2024_07_26_Kostrzewa_HPR-400_wykresy_COP_en

2024_07_26_Kostrzewa_HPR-500_wykresy_COP_en





HEATING CAPACITY CHART

2024_07_26_Kostrzewa_HPR-400_wykresy_MOC_en

2024_07_26_Kostrzewa_HPR-500_wykresy_MOC_en

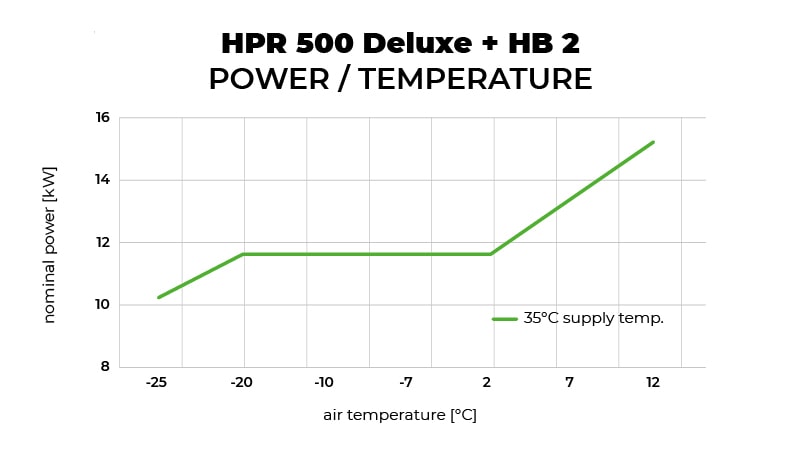

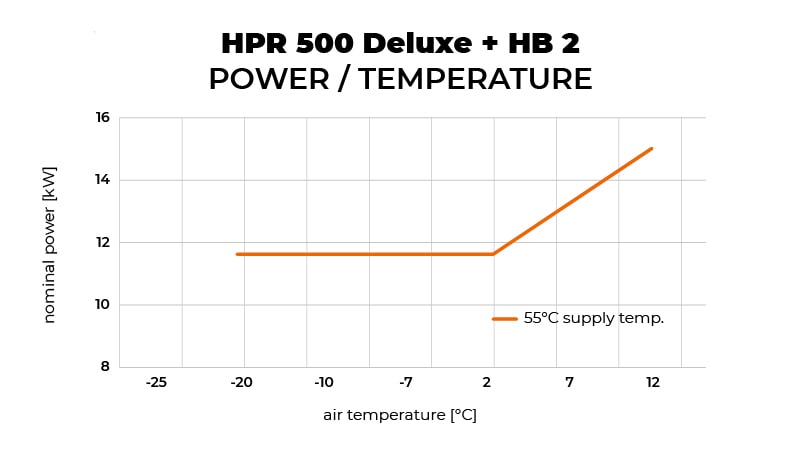

NOMINAL POWER CHART

2024_12_06_Kostrzewa_HPR-500_wykresy_MOC_en_35-min

2024_12_06_Kostrzewa_HPR-500_wykresy_MOC_en_55-min





A++ HPR Deluxe KOSTRZEWA Heat pomp

INCREASED ENERGY EFFICIENCY CLASS

pompa_ciepla_HPR_500_znaczek_01_europe

DESIGNED FOR COLD CLIMATES

Easy-to-install heat pump designed for cold climates, including all climate zones. Most pumps available on the market are designed for temperate climates.

pompa_ciepla_HPR_500_znaczek_02

HEATING
using energy from the air.

pompa_ciepla_HPR_500_znaczek_02

DOWN TO – 25 °C

The unit is fitted with components suitable for cold climates:

  • enlarged evaporator
  • heated drip tray
  • condensate drain

pompa_ciepla_HPR_500_znaczek_18_ENG

NATURAL REFRIGERANT R290

  • no risk of withdrawal from the market
  • no registration or fees for emissions of gases
  • guarantee of good working parameters of the pump
  • natural = eco-friendly (GWP 0.02)

pompa_ciepla_HPR_500_znaczek_05

FOR NEW PROPERTIES AND RETROFITS
with low-temperature or medium-temperature system.

pompa_ciepla_HPR_500_znaczek_07

INNOVATIVE SOUNDPROOFING ELEMENTS
used in the automotive industry reduce the acoustic power of the unit.

pompa_ciepla_HPR_500_znaczek_08C

INOX STAINLESS STEEL CONSTRUCTION
is modern design and corrosion and weather resistance.

pompa_ciepla_HPR_500_znaczek_09

TOP QUALITY COMPONENTS from European brands.

pompa_ciepla_HPR_500_znaczek_10

ORIGINAL DESIGN
of the unit from the KOSTRZEWA Research and Development Department developed in consultation with Polish and German scientists.

pompa_ciepla_HPR_500_znaczek_14

ANTI-FREEZE MODE
active 48 hours in the event of a power cut.

pompa_ciepla_HPR_500_znaczek_12

POSSIBILITY OF USING A HYBRID HEAT PUMP WITH OTHER HEATING DEVICES, including KOSTRZEWA-branded equipment such as the Mini Matic pellet boiler or the Kostrzewa ELE electric boiler.

pompa_ciepla_HPR_500_znaczek_14

REMOTE MONITORING BY FACTORY SERVICE

pompa_ciepla_HPR_500_znaczek_15

SERVICE SUPPORT
KOSTRZEWA has more than 200 qualified authorised service technicians providing warranty and post-warranty service.

pompa_ciepla_HPR_500_znaczek_06

EXCEPTIONALLY QUIET
unit – the sound power of the pump measured at a distance of 5 m is 32.2 dB at full power. Operation is very quiet regardless of weather conditions.



tabela_dB_ENG



RECOMMENDATIONS

Kostrzewa HPR500

The HPR Deluxe heat pump will also work well in homes with radiator heating – with high volume of water, as well as and cast iron radiators. It is most efficient with underfloor heating.



A pump group is included to divide the heating of the hot water and the central heating buffer of at least 100 L. The group includes an emergency power supply to prevent the water in the system from freezing for several days.



When installing a heat pump in an outdoor unit, a condensate drainage system is required, e.g. an absorbable ground or a storm drain.



IMPORTANT TECHNICAL INFORMATION

Hydrobox HB1

HYDROBOX HB 1 and HYDROBOX HB 2 - indoor unit featuring:



✔ electrical switchgear with switches and electrical protection

✔ controller for controlling two heating circuits with mixers

✔ WiFi Internet module with Cloud functionality for data storage and maintenance   monitoring

✔ PWM-controlled circulation pump

✔ 6 kW electric flow-through heater (included with HB 2 model)

✔ magnetic filter

✔ automatic vents

✔ hot water / central heating switching valve

✔ antifreeze system with integrated battery power supply (a system that does not require connection to running water)

✔ energy meter



  • The connection of the hydrobox to the outdoor unit does not require the purchase of costly hydraulic accessories to prevent freezing and provides reduced installation time.
  • Internet module – management of the device through a computer or smartphone; the maintenance technician has direct insight into the operation of the device (standard equipment).
  • Cooling – outlet water temperature of 10 °C (a medium with low freezing temperature must be used in the plant).
  • The device requires the installation of a buffer tank.



 INTERNAL AND EXTERNAL CONNECTIONS

Kostrzewa HPR500



INOX
color
ANTHRACITE
color

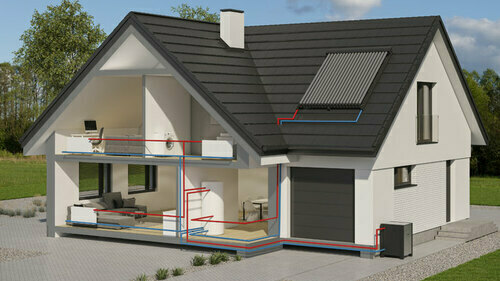

CHOOSING YOUR HEAT PUMP

CHOOSING YOUR HEAT PUMP

Heat pumps are low-temperature (35°C) and medium-temperature (55°C) devices. The higher the temperature of the heating medium, the lower the efficiency of the unit, which is why low-temperature heating, i.e. underfloor heating or low-temperature radiators, is recommended.

R290 REFRIGERANT – THE GAS OF THE FUTURE

R290 REFRIGERANT – THE GAS OF THE FUTURE

The HPR Deluxe heat pump uses the natural refrigerant R290 (propane). It is a colourless, odourless organic compound with minimal environmental impact and guaranteeing safe use due to its high flammability limit.



The R290 refrigerant does not cause corrosion, which has a positive effect on the life of the unit. It has a zero ODP (ozone-neutral) and an extremely low GWP, which means minimal global warming impact compared to other agents. R290 is a modern and environmentally neutral refrigerant that guarantees the good performance of equipment.



R290 is a state-of-the-art refrigerant that guarantees good performance, operational safety and no corrosion of the unit. Propane heat pumps do not require registration and gas emission fees.

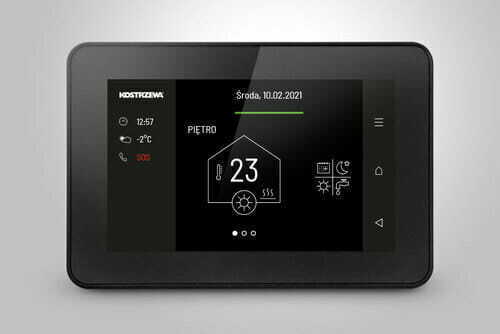

CONTROL UNIT WITH 2-IN-1 COLOUR TOUCH PANEL (BOILER PANEL = ROOM PANEL)

CONTROL UNIT WITH 2-IN-1 COLOUR TOUCH PANEL (BOILER PANEL = ROOM PANEL)

  • The operation of two heating circuits with two mixing valves allows a mixed type of heating, e.g. ground floor with underfloor heating and first floor with e.g. electric radiators.

  • Calculation of COP efficiency.

  • Controls the buffer heater and the recommended hot water heater.



INTERNET MODULE

INTERNET MODULE

is an advanced communication module, enabling the operation of controllers installed in Kostrzewa heat pumps. Access to the settings of the key pump parameters is provided via phone, tablet or computer.



How does it work?

  • PC-based management of the pump via the website

  • When managed by computer, we have a complete picture of the heat pump's operation by accessing the alarm history; graphs of power consumption are a helpful feature.

Download


HPR 400 Deluxe Heat Pump Product Information (EU 813/2013) 139.45 KB

HPR 400 Deluxe Heat Pump Product Sheet (EU 811/2013) 234.84 KB

HPR 500 Deluxe Heat Pump Product Sheet (EU 811/2013) 234.95 KB

HPR 500 Deluxe Heat Pump Product Information (EU 813/2013) 629.72 KB

Declaration of Conformity 163.47 KB

Energy Label HPR 400 Deluxe 417.44 KB

Energy Label HPR 500 Deluxe 422.14 KB
